The Future of Interactive Display Technology
Interactive Smart Boards have transformed the landscape of modern education and business collaboration, replacing traditional whiteboards with sophisticated digital displays that combine touch technology, multimedia capabilities, and seamless connectivity. These all-in-one solutions represent a significant leap forward in how we share knowledge, conduct meetings, and engage audiences across various professional settings.
Understanding Interactive Smart Board Requirements
When selecting an interactive smart board for educational institutions or corporate environments, specific technical requirements must be met to ensure optimal performance and user satisfaction. The ideal interactive display solution should encompass several critical components:
Display Excellence: A minimum 65-inch screen with 4K resolution ensures clear visibility for all participants, whether in a classroom or conference room. The display should feature zero bonding technology, eliminating the gap between the tempered glass and screen for enhanced touch sensitivity and visual clarity.
Advanced Touch Technology: Modern requirements demand sophisticated touch capabilities with minimal latency. The system should support multiple simultaneous touch points, enabling collaborative interaction among multiple users without compromising responsiveness.
Integrated Multimedia System: Built-in cameras, microphones, and speakers eliminate the need for external peripherals, creating a streamlined setup that reduces complexity and maintenance requirements.

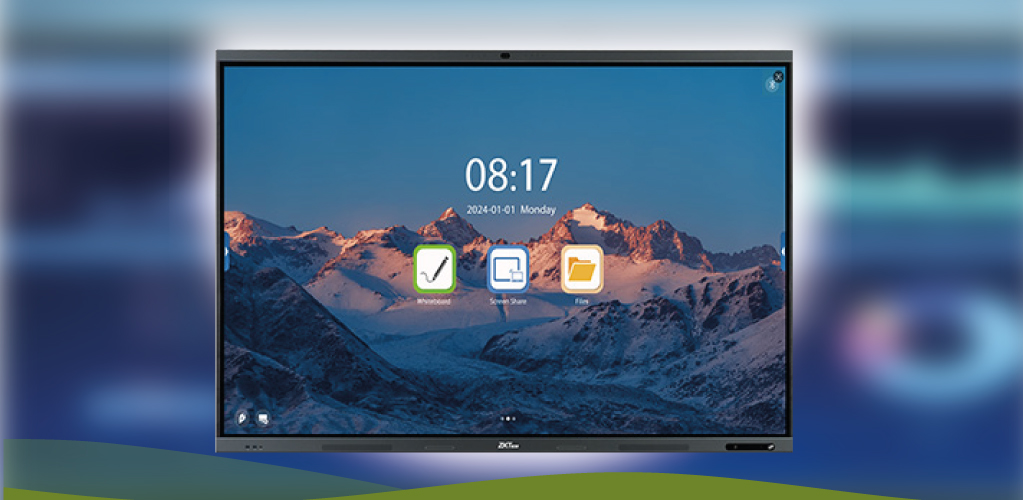

ZKTeco SC02-I365/75/86A: Meeting Excellence Standards
The ZKTeco SC02-I365/75/86A series represents a comprehensive solution that addresses all critical Interactive Smart Board requirements with remarkable precision.
Display Performance That Exceeds Expectations
Available in three sizes (65″, 75″, and 86″), the SC02 series delivers stunning 4K UHD resolution (3840 × 2160 pixels) across all models. The ADS and IPS screen technologies ensure consistent color reproduction and wide viewing angles of 178° both horizontally and vertically. With 450cd/m² brightness and a 1200:1 contrast ratio, content remains clearly visible even in brightly lit environments.
The advanced zero bonding technology creates an seamless interface between the tempered glass surface and the display, resulting in enhanced touch accuracy and reduced parallax effects. The anti-glare surface treatment ensures optimal visibility from any angle while minimizing reflections that could distract from presentations or lessons.
Revolutionary Touch Technology
The SC02 series employs advanced infrared touch technology supporting up to 50 simultaneous touch points – far exceeding the typical requirements for educational and business applications. Touch response time remains impressively low at ≤3ms for both single and multiple touch interactions, ensuring fluid and natural user experiences.
The system achieves remarkable accuracy with ±1mm precision within the central 90% touch area, making detailed annotations and precise interactions effortless. The 9H pencil hardness tempered glass surface provides durability while maintaining smooth writing characteristics with a writing height of ≤1mm.
Comprehensive Camera and Audio Solutions
The integrated 48MP camera significantly surpasses standard requirements, delivering exceptional image quality for video conferencing and content capture. With a diagonal field of view of 114.9°, the camera captures wide-angle perspectives suitable for large meeting rooms and classrooms. Advanced features include face tracking and sound localization, enhancing the interactive experience.
The sophisticated 8-microphone array system provides comprehensive audio pickup capabilities, supporting 3D noise reduction, Automatic Echo Cancellation (AEC), and Automatic Gain Control (AGC). This configuration ensures clear audio capture from multiple participants across large spaces.
Audio output is delivered through a robust speaker system featuring 2×20W speakers plus an optional 20W subwoofer, providing rich, clear sound reproduction for multimedia content and video conferencing.
Powerful Computing Platform
At the heart of the SC02 series lies a robust computing platform featuring an 8-core CPU configuration (Quad-core A73 + Quad-core A53) paired with Mali-G52 MP8 GPU. This powerful combination ensures smooth performance for demanding applications and multitasking scenarios.
The system includes 8GB RAM and 128GB storage, meeting and exceeding standard requirements while providing ample space for applications and content storage. The dual operating system capability supports both Android 14 and optional Windows 11, offering flexibility for different organizational preferences and existing IT infrastructures.
Extensive Connectivity Options
The SC02 series provides comprehensive connectivity solutions addressing diverse integration requirements:
Front Ports: Two USB 3.0 ports and one 65W Type-C port for convenient device connections Side Ports: Multiple HDMI inputs (including ARC and CEC support), DisplayPort, additional USB ports, and an OPS slot for slot-in PC integration Bottom Ports: Professional connectivity including VGA, LAN, RS232, audio inputs/outputs, and SPDIF connections
Wireless connectivity includes Wi-Fi 6 (IEEE 802.11 ax/ac/b/g/n) supporting both 5GHz and 2.4GHz bands, Bluetooth 5.0, and NFC capabilities for seamless device pairing and content sharing.
Advanced Software Capabilities
The SC02 series supports sophisticated whiteboard functionality with writing latency well below the 30ms requirement threshold. Full-screen annotation capabilities allow users to capture and annotate any displayed content, while intelligent recognition converts hand-drawn shapes into standard geometric figures and handwritten text into printed format.
Multi-window functionality enables split-screen operations, allowing simultaneous display of multiple applications with user-adjustable window sizing. The system supports BYOM (Bring Your Own Meeting) functionality, enabling third-party conference applications to utilize the integrated hardware peripherals seamlessly.
Compliance and Performance Excellence
The ZKTeco SC02-I365/75/86A series demonstrates comprehensive compliance with demanding Interactive Smart Board requirements:
- ✅ Size Requirements: Available in 65″, 75″, and 86″ configurations
- ✅ System Configuration: 8-core CPU, 8GB RAM, 128GB storage
- ✅ Display Standards: 4K resolution, zero bonding, anti-glare protection
- ✅ Camera Performance: 48MP resolution exceeding 1080P requirements
- ✅ Audio Excellence: 8-microphone array surpassing 6-microphone minimum
- ✅ Connectivity Standards: Comprehensive port selection exceeding requirements
- ✅ Touch Performance: Advanced infrared technology with sub-3ms response
- ✅ Projection Capabilities: Full wired and wireless projection support
Conclusion
The ZKTeco SC02-I365/75/86A Interactive Smart Board series represents a superior solution that not only meets but significantly exceeds standard requirements for modern educational and business environments. Through its combination of advanced display technology, powerful computing capabilities, comprehensive connectivity, and sophisticated software features, this system delivers an unparalleled interactive experience that transforms how organizations collaborate, teach, and communicate.
For institutions seeking a future-ready Interactive Smart Board solution that provides exceptional value while meeting the most demanding technical specifications, the SC02 series stands as an outstanding choice that will serve users effectively for years to come.
